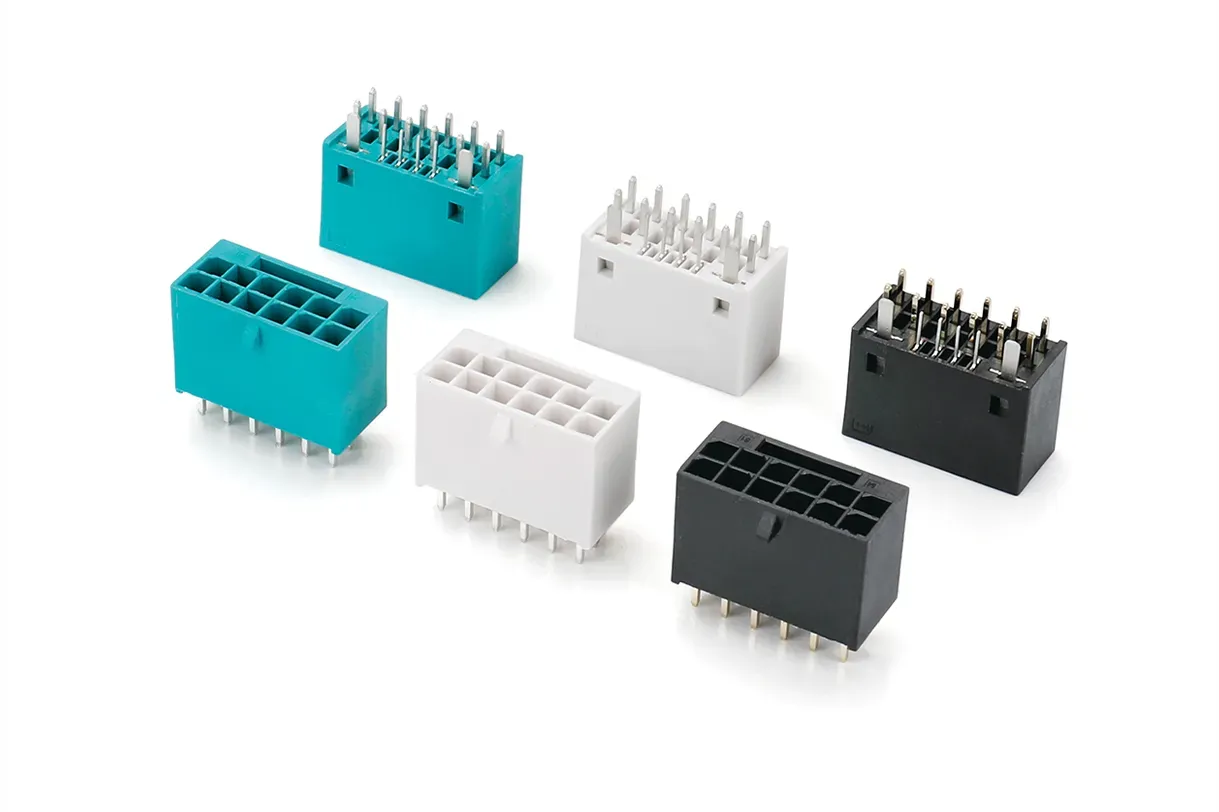

Electric Tool Signal Connector | Electric Tool Connector Assembly

In automated industrial systems, safety is paramount, and the tool connector contributes significantly to achieving safe, error-free connections. Designed with locking tabs, keyed housings, and proper insulation, a tool connector ensures that only compatible connectors are mated. This prevents accidental arcing, overheating, or reversed polarity. For example, in robotic welding arms or CNC machinery, the tool connector must withstand high temperatures, vibrations, and frequent movements. Safety-focused designs help prevent injuries and protect equipment during tool changeovers or repairs. Moreover, a secure tool connector minimizes downtime caused by loose or faulty wiring. JVT’s tool connectors follow international safety standards, providing peace of mind for engineers and operators in high-risk environments.

A tool connector plays a vital role in connecting power tools to their energy and control sources in a secure and efficient manner. Whether in a factory setting or on a construction site, the ability to quickly attach and detach a tool from its power supply improves productivity and reduces downtime. Tool connectors are typically designed with snap-lock or twist-lock mechanisms to ensure strong retention during operation. These connectors can transmit both power and control signals, supporting tools such as drills, grinders, robotic arms, or automatic screwdrivers. In fast-paced industrial environments, a high-quality tool connector reduces the risk of failure or misconnection and allows workers to swap tools without shutting down systems. The reliability and simplicity of a tool connector make it a critical component in tool automation and smart manufacturing.

Tool connectors are designed to work across various tool types and equipment brands. JVT manufactures tool connectors in multiple sizes, shapes, and pin configurations to support electric drills, servo tools, pneumatic controls, and robotic end-effectors. Whether the tool uses DC or AC power, analog signals, or digital interfaces, JVT’s tool connector portfolio can be customized for voltage, current, and protocol needs. With plug-and-play capability, our tool connectors reduce the complexity of integrating new devices into an existing setup. This universal approach is especially valuable for OEMs and system integrators who require flexibility and scalability. Choosing the right tool connector helps ensure cross-compatibility without compromising performance or safety.

Speed is crucial in production lines, especially when a malfunctioning tool needs to be replaced. A well-designed tool connector allows for fast tool swaps without the need for rewiring or manual calibration. For example, on an automated production line, an operator can unplug a robotic welder and plug in a new one in seconds, minimizing machine downtime. This convenience is made possible by the standardized design and secure mating features of the tool connector. Magnetic guides, color coding, and tactile clicks offer confirmation of proper connection. For maintenance teams, this translates to faster troubleshooting and fewer interruptions. JVT’s tool connectors are engineered for rapid replacement, supporting high-volume, high-speed production environments.
