Pin Header Pitch | 4 Pin Female Header

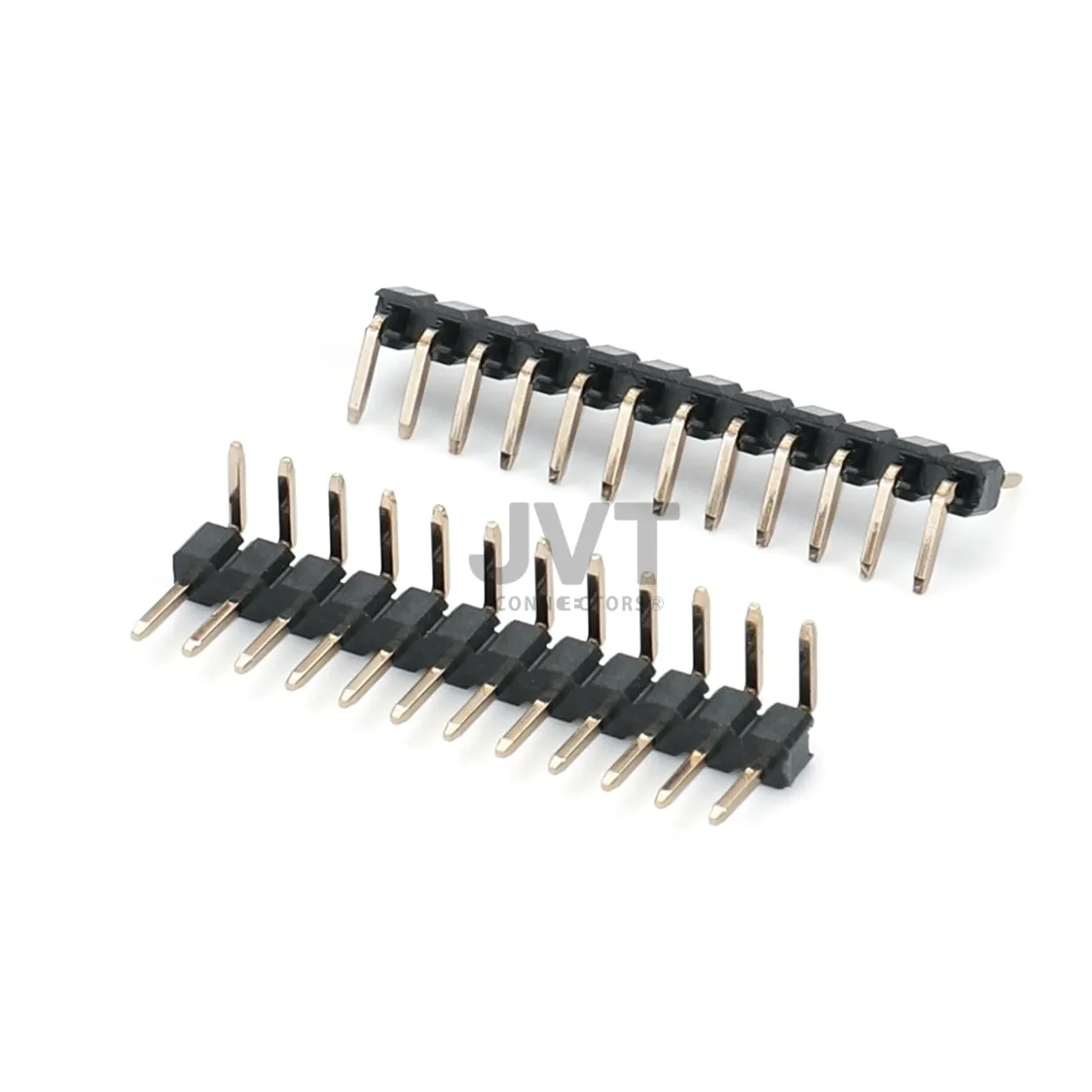

Pin headers come in a wide range of configurations, enabling PCB designers to create versatile and space-optimized layouts. Whether it’s a single-row pin header for basic connections or a triple-row version for dense signal routing, each configuration offers flexibility to suit specific circuit requirements. Straight pin headers are commonly used when vertical insertion is needed, whereas right-angle pin headers support horizontal connection paths. Additionally, custom pitch sizes, gold-plated contacts, and elevated stacking heights are available for specialized applications. Designers can select from surface-mount or through-hole pin header types based on assembly methods. By choosing the appropriate pin header configuration, engineers ensure reliable performance and easier integration within compact or layered PCB environments. These connectors provide not only mechanical stability but also electrical reliability critical for long-term product operation.

Choosing the right pin header not only affects product performance but also impacts manufacturing efficiency and overall cost. For example, selecting a through-hole pin header may increase assembly robustness but could slow down automated soldering compared to surface-mount options. On the other hand, SMT pin headers are more suitable for high-speed pick-and-place assembly lines. Factors such as number of pins, plating type, packaging method (tray, tube, or reel), and pin length should be considered when optimizing for production. Additionally, choosing pre-molded or pre-cut pin header strips can reduce assembly steps and errors. By selecting pin headers that align with both electrical requirements and manufacturing constraints, businesses can achieve cost-effective production while maintaining consistent quality.

In high-speed electronic applications, the quality and construction of the pin header can significantly influence signal integrity. Low-quality materials or improper plating may introduce noise, resistance, or cross-talk that degrade the circuit’s performance. High-quality pin headers often feature gold-plated contacts, which enhance conductivity and prevent oxidation, ensuring long-term reliable operation. The choice of pin header housing material also affects temperature resistance and mechanical durability, particularly in industrial or automotive environments. Signal-sensitive circuits such as USB, HDMI, or SPI interfaces require precisely manufactured pin headers with controlled impedance and minimal variation in contact resistance. As more devices adopt high-frequency digital signals, manufacturers are increasingly turning to precision-engineered pin headers to maintain performance standards. Choosing certified, high-reliability pin headers is essential when designing for critical systems like medical devices, aerospace electronics, or high-speed communication modules.

For high-volume electronics manufacturing, the use of tape-and-reel packaging for pin headers significantly enhances automation and throughput. Tape-and-reel pin headers are precisely placed within carrier tapes, making them compatible with automated pick-and-place machines. This packaging format reduces manual handling, minimizes contamination risks, and increases placement accuracy on PCBs. SMT pin headers packaged in reels are especially valuable for compact, high-speed production lines such as those used for smartphones, routers, or wearables. Moreover, using tape-and-reel pin headers allows better inventory management and consistent quality during the soldering process. When designing a product for automated assembly, specifying tape-and-reel packaged pin headers ensures the process remains efficient, scalable, and repeatable without sacrificing component reliability.
